Flat Bed CNC Machine

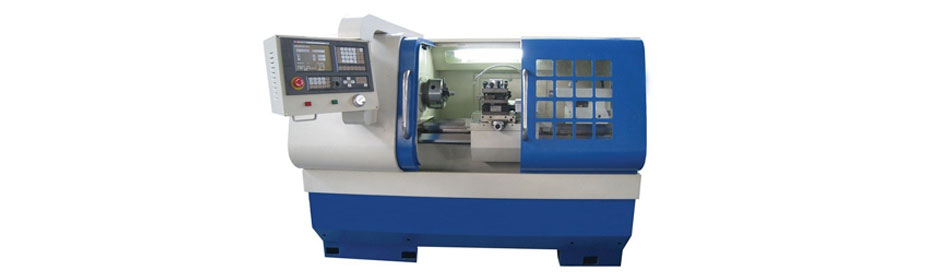

‘SPEED TURN’ FLAT BED CNC LATHE
|
MODEL |
ST 320 |
|
Max.swing diameter over bed |
360mm |
|
Max swing over cross slide |
150mm |
|
Distance between centers |
580mm |
|
Bed width |
330mm(others 205mm) |
|
Servo spindle |
0-3000 rpm |
|
Spindle bore |
48 |
|
Spindle taper |
A2-5 |
|
Turret |
4 STATION turret |
|
Z /Xfast speed |
10m/min |
|
Tailstock taper |
MT4 |
|
Tailstock travel |
120mm |
|
Main motor power |
3kw |
|
CNC System |
Siemens 808D |
